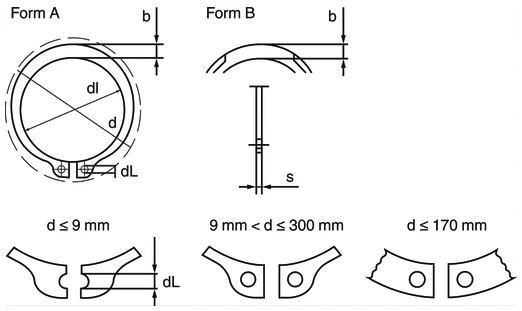

| Artikuls | Nosaukums | Skrūves d Ø | Ārējais d Ø | Iekšējais dl Ø | Platums b | Materiāla biezums s | Cauruma dL Ø | Iepakojums |
| 471-3 | sprostgredzens din471 m 3×0.4 | 3 | 2.7 | 2.8 | 0.8 | 0.4 | 1.0 | 2000 |
| 471-4 | sprostgredzens din471 m 4×0.4 | 4 | 3.7 | 3.8 | 0.9 | 0.4 | 1.0 | 5000 |
| 471-5 | sprostgredzens din471 m 5×0.6 | 5 | 4.7 | 4.8 | 1.1 | 0.6 | 1.0 | 2500 |
| 471-6 | sprostgredzens din471 m 6×0.7 | 6 | 5.6 | 5.7 | 1.3 | 0.7 | 1.2 | 2500 |
| 471-7 | sprostgredzens din471 m 7×0.8 | 7 | 6.5 | 6.7 | 1.4 | 0.8 | 1.2 | 1500 |
| 471-8 | sprostgredzens din471 m 8×0.8 | 8 | 7.4 | 7.6 | 1.5 | 0.8 | 1.2 | 4000 |
| 471-9 | sprostgredzens din471 m 9×1.0 | 9 | 8.4 | 8.6 | 1.7 | 1.0 | 1.2 | 2000 |
| 471-10 | sprostgredzens din471 m 10×1.0 | 10 | 9.3 | 9.6 | 1.8 | 1.0 | 1.5 | 1500 |
| 471-11 | sprostgredzens din471 m 11×1.0 | 11 | 10.2 | 10.5 | 1.8 | 1.0 | 1.5 | 100 |
| 471-12 | sprostgredzens din471 m 12×1.0 | 12 | 11 | 11.5 | 1.8 | 1.0 | 1.7 | 500 |
| 471-13 | sprostgredzens din471 m 13×1.0 | 13 | 11.9 | 12.4 | 2 | 1.0 | 1.7 | 1000 |
| 471-14 | sprostgredzens din471 m 14×1.0 | 14 | 12.9 | 13.4 | 2.1 | 1.0 | 1.7 | 1000 |
| 471-15 | sprostgredzens din471 m 15×1.0 | 15 | 13.8 | 14.3 | 2.2 | 1.0 | 1.7 | 1000 |
| 471-16 | sprostgredzens din471 m 16×1.0 | 16 | 14.7 | 15.2 | 2.2 | 1.0 | 1.7 | 1000 |
| 471-17 | sprostgredzens din471 m 17×1.0 | 17 | 15.7 | 16.2 | 2.3 | 1.0 | 1.7 | 1000 |
| 471-18 | sprostgredzens din471 m 18×1.2 | 18 | 16.5 | 17 | 2.4 | 1.2 | 2.0 | 1000 |
| 471-19 | sprostgredzens din471 m 19×1.2 | 19 | 17.5 | 18 | 2.5 | 1.2 | 2.0 | 1000 |
| 471-20 | sprostgredzens din471 m 20×1.2 | 20 | 18.5 | 19 | 2.6 | 1.2 | 2.0 | 1000 |
| 471-21 | sprostgredzens din471 m 21×1.2 | 21 | 19.5 | 20 | 2.7 | 1.2 | 2.0 | 500 |
| 471-22 | sprostgredzens din471 m 22×1.2 | 22 | 20.5 | 21 | 2.8 | 1.2 | 2.0 | 500 |
| 471-23 | sprostgredzens din471 m 23×1.2 | 23 | 21.5 | 22 | 2.9 | 1.2 | 2.0 | 500 |
| 471-24 | sprostgredzens din471 m 24×1.2 | 24 | 22.2 | 22.9 | 3 | 1.2 | 2.0 | 500 |
| 471-25 | sprostgredzens din471 m 25×1.2 | 25 | 23.2 | 23.9 | 3 | 1.2 | 2.0 | 250 |
| 471-26 | sprostgredzens din471 m 26×1.2 | 26 | 24.2 | 24.9 | 3.1 | 1.2 | 2.0 | 250 |
| 471-27 | sprostgredzens din471 m 27×1.2 | 27 | 24.9 | 25.6 | 3.2 | 1.2 | 2.0 | 200 |
| 471-28 | sprostgredzens din471 m 28×1.5 | 28 | 25.9 | 26.6 | 3.2 | 1.5 | 2.0 | 250 |
| 471-29 | sprostgredzens din471 m 29×1.5 | 29 | 26.9 | 27.6 | 3.4 | 1.5 | 2.0 | 250 |
| 471-30 | sprostgredzens din471 m 30×1.5 | 30 | 27.9 | 28.6 | 3.5 | 1.5 | 2.0 | 250 |
| 471-31 | sprostgredzens din471 m 31×1.5 | 31 | 28.6 | 29.3 | 3.5 | 1.5 | 2.5 | 250 |
| 471-32 | sprostgredzens din471 m 32×1.5 | 32 | 29.6 | 30.3 | 3.6 | 1.5 | 2.5 | 250 |
| 471-33 | sprostgredzens din471 m 33×1.5 | 33 | 30.5 | 31.3 | 3.7 | 1.5 | 2.5 | 100 |
| 471-34 | sprostgredzens din471 m 34×1.5 | 34 | 31.5 | 32.3 | 3.8 | 1.5 | 2.5 | 250 |
| 471-35 | sprostgredzens din471 m 35×1.5 | 35 | 32.2 | 33 | 3.9 | 1.5 | 2.5 | 250 |
| 471-36 | sprostgredzens din471 m 36×1.75 | 36 | 33.2 | 34 | 4 | 1.75 | 2.5 | 100 |
| 471-37 | sprostgredzens din471 m 37×1.75 | 37 | 34.2 | 35 | 4.1 | 1.75 | 2.5 | 100 |
| 471-38 | sprostgredzens din471 m 38×1.75 | 38 | 35.2 | 36 | 4.2 | 1.75 | 2.5 | 100 |
| 471-39 | sprostgredzens din471 m 39×1.75 | 39 | 36 | 37 | 4.3 | 1.75 | 2.5 | 100 |
| 471-40 | sprostgredzens din471 m 40×1.75 | 40 | 36.5 | 37.5 | 4.4 | 1.75 | 2.5 | 210 |
| 471-41 | sprostgredzens din471 m 41×1.75 | 41 | 37.5 | 38.5 | 4.5 | 1.75 | 2.5 | 100 |
| 471-42 | sprostgredzens din471 m 42×1.75 | 42 | 38.5 | 39.5 | 4.5 | 1.75 | 2.5 | 100 |
| 471-44 | sprostgredzens din471 m 44×1.75 | 44 | 40.5 | 41.5 | 4.6 | 1.75 | 2.5 | 100 |
| 471-45 | sprostgredzens din471 m 45×1.75 | 45 | 41.5 | 42.5 | 4.7 | 1.75 | 2.5 | 100 |
| 471-46 | sprostgredzens din471 m 46×1.75 | 46 | 42.5 | 43.5 | 4.8 | 1.75 | 2.5 | 100 |
| 471-47 | sprostgredzens din471 m 47×1.75 | 47 | 43.5 | 44.5 | 4.9 | 1.75 | 2.5 | 100 |
| 471-48 | sprostgredzens din471 m 48×1.75 | 48 | 44.5 | 45.5 | 5 | 1.75 | 2.5 | 100 |
| 471-50 | sprostgredzens din471 m 50×2.0 | 50 | 45.8 | 47 | 5.1 | 2.0 | 2.5 | 100 |
| 471-52 | sprostgredzens din471 m 52×2.0 | 52 | 47.8 | 49 | 5.2 | 2.0 | 2.5 | 100 |
| 471-54 | sprostgredzens din471 m 54×2.0 | 54 | 49.8 | 51 | 5.3 | 2.0 | 2.5 | 100 |
| 471-55 | sprostgredzens din471 m 55×2.0 | 55 | 50.8 | 52 | 5.4 | 2.0 | 2.5 | 100 |
| 471-56 | sprostgredzens din471 m 56×2.0 | 56 | 51.8 | 53 | 5.5 | 2.0 | 2.5 | 100 |
| 471-57 | sprostgredzens din471 m 57×2.0 | 57 | 52.8 | 54 | 5.5 | 2.0 | 2.5 | 100 |
| 471-58 | sprostgredzens din471 m 58×2.0 | 58 | 53.8 | 55 | 5.6 | 2.0 | 2.5 | 100 |
| 471-60 | sprostgredzens din471 m 60×2.0 | 60 | 55.8 | 57 | 5.8 | 2.0 | 2.5 | 100 |
| 471-62 | sprostgredzens din471 m 62×2.0 | 62 | 57.8 | 59 | 6 | 2.0 | 2.5 | 100 |
| 471-65 | sprostgredzens din471 m 65×2.5 | 65 | 60.8 | 62 | 6.3 | 2.5 | 3.0 | 100 |
| 471-67 | sprostgredzens din471 m 67×2.5 | 67 | 62.5 | 64 | 6.4 | 2.5 | 3.0 | 100 |
| 471-68 | sprostgredzens din471 m 68×2.5 | 68 | 63.5 | 65 | 6.5 | 2.5 | 3.0 | 100 |
| 471-70 | sprostgredzens din471 m 70×2.5 | 70 | 65.5 | 67 | 6.6 | 2.5 | 3.0 | 75 |
| 471-72 | sprostgredzens din471 m 75×2.5 | 72 | 67.5 | 69 | 6.8 | 2.5 | 3.0 | 75 |
| 471-75 | sprostgredzens din471 m 75×2.5 | 75 | 70.5 | 72 | 7 | 2.5 | 3.0 | 75 |
| 471-77 | sprostgredzens din471 m 77×2.5 | 77 | 72.5 | 74 | 7.2 | 2.5 | 3.0 | 75 |
| 471-78 | sprostgredzens din471 m 78×2.5 | 78 | 73.5 | 75 | 7.3 | 2.5 | 3.0 | 50 |
| 471-80 | sprostgredzens din471 m 80×2.5 | 80 | 74.5 | 76.5 | 7.4 | 2.5 | 3.0 | 75 |
| 471-82 | sprostgredzens din471 m 82×2.5 | 82 | 76.5 | 78.5 | 7.6 | 2.5 | 3.0 | 50 |
| 471-85 | sprostgredzens din471 m 85×3.0 | 85 | 79.5 | 81.5 | 7.8 | 3.0 | 3.5 | 50 |
| 471-87 | sprostgredzens din471 m 87×3.0 | 87 | 81.5 | 83.5 | 7.9 | 3.0 | 3.5 | 50 |
| 471-90 | sprostgredzens din471 m 90×3.0 | 90 | 84.5 | 86.5 | 8.2 | 3.0 | 3.5 | 50 |
| 471-95 | sprostgredzens din471 m 95×3.0 | 95 | 84.5 | 91.5 | 8.4 | 3.0 | 3.5 | 50 |
| 471-100 | sprostgredzens din471 m100x3.0 | 100 | 89.5 | 96.5 | 8.6 | 3.0 | 3.5 | 50 |
| 471-110 | sprostgredzens din471 m110x4.0 | 110 | 103 | 106 | 9.6 | 4.0 | 3.5 | 1 |
| 471-120 | sprostgredzens din471 m120x4.0 | 120 | 113 | 116 | 10.2 | 4.0 | 3.5 | 1 |
| 471-125 | sprostgredzens din471 m125x4.0 | 125 | 118 | 121 | 10.4 | 4.0 | 4.0 | 1 |
| 471-130 | sprostgredzens din471 m130x4.0 | 130 | 123 | 126 | 10.7 | 4.0 | 4.0 | 1 |
| 471-140 | sprostgredzens din471 m140x4.0 | 140 | 133 | 136 | 11.2 | 4.0 | 4.0 | 1 |
| 471-150 | sprostgredzens din471 m150x4.0 | 150 | 142 | 145 | 11.8 | 4.0 | 4.0 | 1 |
| 471-160 | sprostgredzens din471 m160x4.0 | 160 | 151 | 155 | 12.2 | 4.0 | 4.0 | 1 |
| 471-165 | sprostgredzens din471 m165x4.0 | 165 | 155.5 | 160 | 12.5 | 4.0 | 4.0 | 1 |
| 471-185 | sprostgredzens din471 m185x4.0 | 185 | 175.5 | 180 | 13.5 | 4.0 | 4.0 | 1 |
| 471-190 | sprostgredzens din471 m190x4.0 | 190 | 180.5 | 185 | 14 | 4.0 | 4.0 | 1 |
| 471-240 | sprostgredzens din471 m 240×5.0 | 240 | 228 | 234 | 14 | 5.0 | 4.0 | 1 |
| 471-260 | sprostgredzens din471 m 260×5.0 | 260 | 245 | 252 | 16 | 5.0 | 5.0 | 1 |
